Description

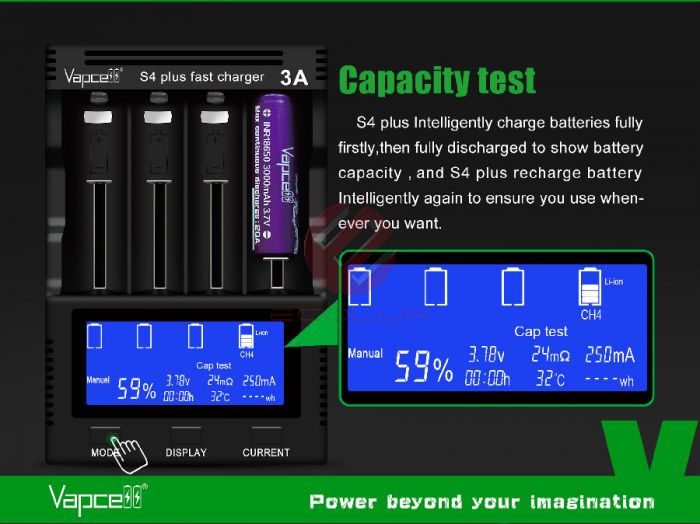

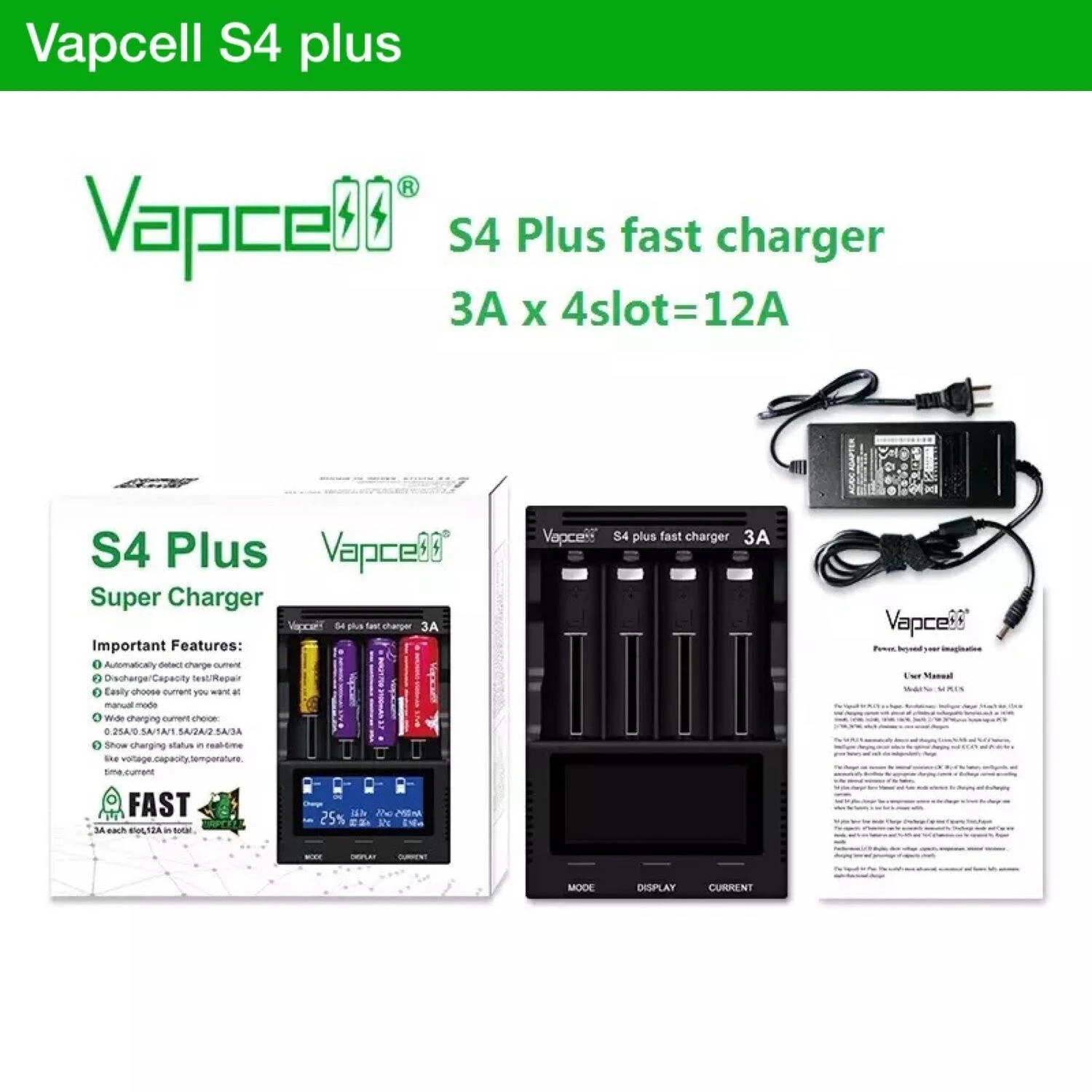

A fairly advanced and versatile fast charger with active temperature monitoring. Despite high performance of a total of 12A charging current, the charger allows small batteries to be charged gently and safely by means of internal resistance analysis or manual selection. High-current batteries and larger batteries can be powered with 3A Pro charging slot. In addition, the charger can discharge, test and repair batteries. Support for Li-ion 10440 to 26700 and NiMh/NiCD from AAA to C batteries. The equipment has placed great importance on simple operation, so the charger is ideal for professionals as well as for home use. With a simple lever, the mode can be switched between manual and automatic operation. The S4 plus from Vapcell is one of the first 4 slot chargers with a total charging current of max. 12 A. The charging current can be manually adjusted in the levels 0.25 A / 0.5 A / 1.5 A / 2 A / 2.5 A / 3 A. In auto mode, it is automatically selected after internal resistance analysis. With the discharge function, the following discharge currents are adjustable: 0.25 A / 0.5 A / 1 A. Charging process is monitored with a temperature filler and automatically lowers the charging current if required. The following Li-ion, NIMH and NiCd battery types can be charged: all Li-Ion / NiMh with a diameter of 10 mm to 26 mm and a length of 34 mm to 76.5 mm. Batteries with 22 mm diameter fit only in the charging slot 1 and 4. Li-Ion: 10340 / 10440 / 14500 / 14650 / 16340 / 16650 / 17500 / 17670 / 18350 / 18500 / 18490 / 18650 / 18700 / 2600: /26650 / 22650 / 20700 / 21700, 3.6V and 3.7V Li-ion batteries Ni-MH/Ni-CD: AAAA, AAA, SC, C. Product features: charge and discharge NiCd, NiMH or 3.6V – 3.7V lithium-ion batteries. Power bank function. (with batteries inserted) output USB-A 5V 1A analogue switch for automatic and manual operation. Total power 12 A/3 A per charging slot. Optimise and determine the maximum capacity of the batteries. Active temperature monitoring
